Whitemetal Bearing Lining Thickness
How finished Babbitt thickness affects fatigue strength, heat transfer, embedability, repair and inspection.
There Is No Universal Correct Thickness
Whitemetal thickness is part of the bearing design, not a standalone workshop preference. The correct finished layer depends on load, speed, temperature, dynamic duty, backing material, bond quality, contamination control, manufacturing method and the amount of fitting or future repair the bearing must accommodate.
Define the Measurement
Three Thicknesses Are Commonly Confused
Raw or As-Cast Thickness
Alloy present before finish machining. It includes machining stock, casting variation and any allowance required by the manufacturing or test process.
Finished Lining Thickness
Distance from the finished running surface to the backing interface after final machining. This is normally the design thickness used for performance and fatigue assessment.
Remaining Thickness
Local lining left after service wear, wiping, scraping or previous repair. It must not automatically be treated as the original design value.
Published Data
Thickness Examples and Inspection Thresholds
These values show how widely designs vary. They are not interchangeable selection bands or machining specifications.
| Published context | Thickness | What it tells the technician |
|---|---|---|
| Thin-wall bearing shells described in a Texas A&M Turbomachinery Laboratory tutorial | 0.05-0.127 mm0.002-0.005 in | A precision thin-wall construction. It is not representative of repairable thick-wall turbine or mill bearings. |
| Thin Babbitt on bronze backing used in turbomachinery upgrades in the same tutorial | 0.127-0.203 mm0.005-0.008 in | An example of using strong, thermally conductive backing and a thin lining to improve fatigue performance. |
| Traditional thick-wall turbomachinery bearing examples in the tutorial | 0.51-1.27 mm0.020-0.050 in | A historical application range, not a modern default. Dynamic load, temperature and backing construction still require review. |
| Large vertical thrust-shoe test installation published by Kingsbury | Approx. 4.8 mm3/16 in | A machine-specific example showing that large, low-speed thrust designs can be far thicker than high-speed turbomachinery linings. |
| ISO 4386-1:2019 ultrasonic bond-test scope | ≥0.5 mm | The standard applies to qualifying tin- or lead-based metallic linings at or above this thickness. This is an inspection-method threshold, not a minimum design thickness. |
| ISO 4386-2:2019 destructive bond-test scope | ≥2 mm tested layerplus at least 1 mm raw allowance | The additional raw material is required for the specified tensile specimen. It is not a general machining allowance for every bearing. |
Design Balance
Thinner and Thicker Linings Trade Different Benefits
Reasons to Use a Thinner Lining
- Higher fatigue strength when the alloy is well bonded to a strong backing
- Shorter thermal path from the oil film into the backing
- Lower volume of soft alloy available to creep or distort
- Useful for high-speed or dynamically loaded engineered bearings
Requires accurate backing geometry, controlled manufacture, clean oil and limited allowance for scraping or future machining.
Reasons to Retain a Thicker Lining
- Greater capacity to embed occasional contamination
- More conformability and allowance for local fitting or scraping
- Machining stock for large, repairable or legacy components
- Additional sacrificial material before the backing is exposed
Thicker alloy generally has lower fatigue strength and greater thermal resistance, so dynamic load, temperature and bond quality become critical.
Application Context
What Pushes the Design Thinner or Thicker?
High-Speed Turbomachinery
Dynamic load, heat and long operating intervals favour controlled, uniform linings on stiff or thermally conductive backing. Thickness must be assessed with peak film pressure and operating temperature.
Large Low-Speed Bearings

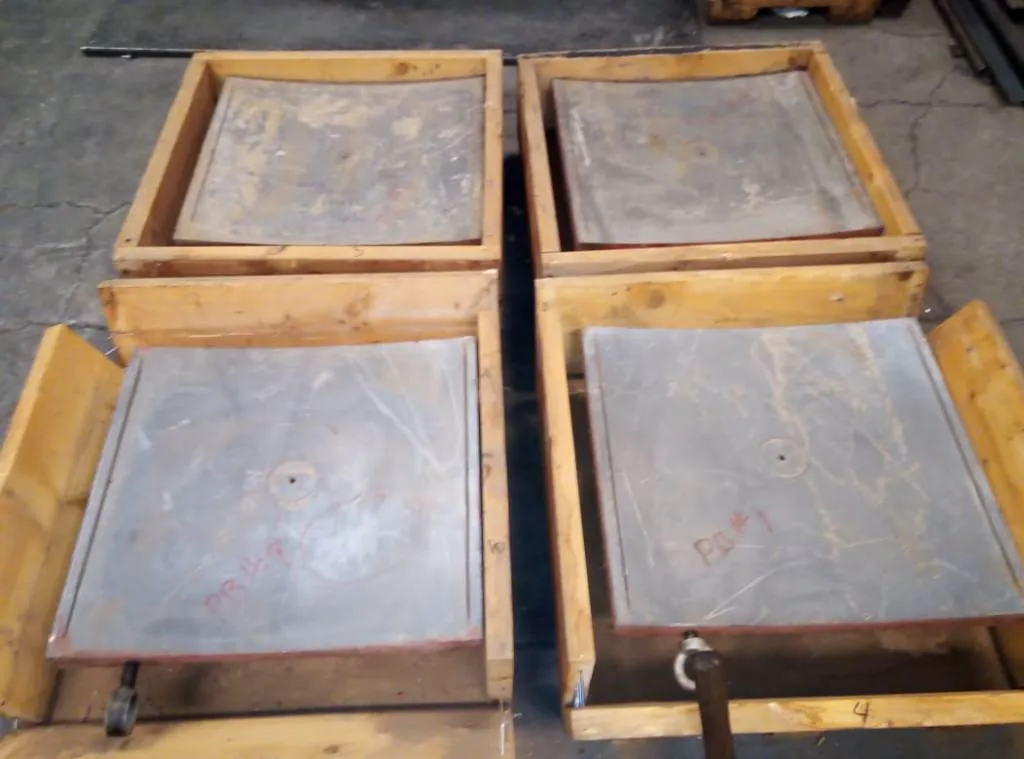

Large thrust pads, mill bearings and legacy designs may use thicker cast linings to provide conformability, contamination tolerance and repair stock. Size alone does not set the value.
Repair and Re-Lining
The target should normally reproduce confirmed final geometry. Increasing thickness to recover an undersize backing changes fatigue, heat transfer, bore geometry and available bond area.
Dynamic or Cyclic Load
Vibration and fluctuating film pressure increase fatigue demand. A thick layer selected only for repair convenience may reduce the safety margin against crack initiation.
Temperature and Backing
High temperature reduces Babbitt strength. Lining depth and backing conductivity both affect the path carrying heat away from the oil film.
Oil Cleanliness
Historically, thick Babbitt provided more embedability where contamination was difficult to control. Modern filtration can reduce that requirement but does not eliminate contamination risk.
Nominal Geometry Check
Cylindrical Journal Lining Calculator
For a concentric cylindrical backing bore, nominal radial lining thickness is half the difference between backing bore and finished bearing bore.
- Use verified diameters in the same units.
- Do not use for taper, offset, multi-lobe or tilting-pad geometry.
- The result does not include raw casting or machining allowance.
- Confirm local minimum thickness and bond condition separately.
Repair Workflow
How to Establish the Re-Lining Thickness
- 1
Recover the Design Basis
Use approved drawings, shaft or collar dimensions, housing data, clearances and any previous repair records.
- 2
Survey the Existing Bearing
Record finished geometry, lining loss, damage pattern, split condition and local remaining thickness before stripping.
- 3
Inspect the Bare Backing
After controlled stripping, assess dimensions, distortion, cracking, corrosion, old repairs and suitability for re-use.
- 4
Set Raw and Finished Requirements
Define final thickness, casting stock, machining datums, grooves, chamfers, sensor positions and inspection acceptance criteria.
- 5
Verify After Machining
Confirm final geometry, local thickness where required, surface condition and bond inspection to the applicable specification.
Inspection
Thickness Does Not Replace Bond Quality
Dimensional Verification
Check final running geometry and, where required, derive lining depth from measured backing and finished surfaces. Map local variation rather than relying on one point.
Ultrasonic Bond Inspection
ISO 4386-1:2019 covers qualitative ultrasonic bond testing for applicable metallic multilayer bearings with lining at least 0.5 mm thick.
Penetrant Inspection
ISO 4386-3:2018 addresses visible transition areas and surface discontinuities that ultrasonic inspection cannot assess.
Common Questions
Whitemetal Thickness FAQ
What is the correct thickness?
There is no universal value. Restore a confirmed design or select the thickness through bearing analysis, material choice, backing design and manufacturing review.
Does thinner Babbitt resist fatigue better?
Generally yes when it is uniformly bonded to a suitable strong backing. The thinner layer is better constrained, but embedability, fitting allowance and backing exposure must still be considered.
Is lining thickness the oil-film thickness?
No. Lining thickness is a material dimension. Oil-film thickness is the much smaller operating gap separating the bearing and rotating surface.
Can the old remaining thickness be copied?
Not without confirming the original geometry. Wear, wiping, scraping, previous machining or backing distortion can make the measured remainder misleading.
Technical Basis
Published examples and fatigue guidance were cross-checked against the Texas A&M Turbomachinery Laboratory tutorial Fluid Film Bearing Fundamentals and Failure Analysis, its paper on modern journal bearing performance, a Kingsbury large thrust-bearing application, and the official ISO 4386 inspection standards. Values are presented as sourced examples, not Oiltech design limits.
